TV channels and Radio bitrates DAB+ DTT FIBER Satellite Cable OTT

GENERAL

TYPE	SID	LCN	PCR	PMT
TV	40003	-	4001	4000

MUX = ESP41
Size of file for 1 Hour recording : 4.7 Go
Provider : RTVE
Last update 13/07/2025 03:19 (Europe/Madrid Time)

VIDEO

PID	Mode	Resolution
4001	HEVC	3840x2160

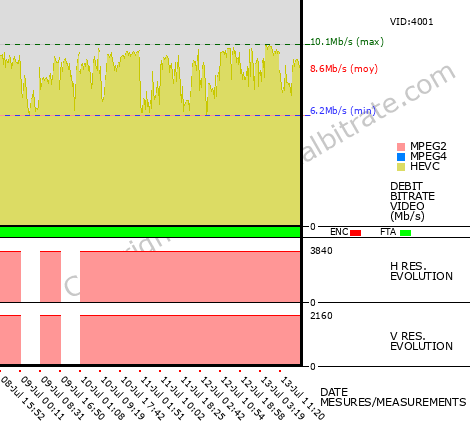

Bitrate Mb/s	min	ave	max
	6.2	8.7	10.1

Format	Plus
1.77 (16:9)	GOP = ? fps = 50 profil = Main 10@L5.1@High chroma = 4:2:0 (Type 2) bit depth = 10 bits (HDR compliant) color = BT.2020

See picture in 4K Size

AUDIO

PID	Lang	Mode
4002	spa	E-AC3 Stereo

Bitrate kb/s	min	ave	max
	256	256	256

Capture (13/07/2025 03:19)

Update Required To play the media you will need to either update your browser to a recent version or update your Flash plugin.

PID	Lang	Mode
4003	qaa	E-AC3 Stereo

Bitrate kb/s	min	ave	max
	192	192	192

Capture (13/07/2025 03:19)

Update Required To play the media you will need to either update your browser to a recent version or update your Flash plugin.

PID	Lang	Mode
4004	spa	AC4
AC4 details

Bitrate kb/s	min	ave	max
	320	352	384

PID	Lang	Mode
4005	spa	E-AC3 Mono

Bitrate kb/s	min	ave	max
	64	64	64

Capture (13/07/2025 03:19)

Update Required To play the media you will need to either update your browser to a recent version or update your Flash plugin.

DATA

PID	Type
4011	Sub-title

Bitrate kb/s	min	ave	max
	2	34	98

PID	Type
4012	Sub-title

Bitrate kb/s	min	ave	max
	2	2	3

PID	Type
4015	Data (AIT)

Bitrate kb/s	min	ave	max
	2	2	3

CRYPT

EIT

ACTUAL EVENT

Title

01h50>06h00 NOTICIAS 24 H

Short event

Extended Event

Núm. cap.:193; Presentacion: Olga Lambea, Beatriz Perez De Aranda, Jesus Amor, Marta Solano, Angeles Bravo, Pedro Carreño; Información continua 24 horas nacional e internacional SUBT.

NEXT EVENT

Title

06h00>07h00 NOTICIAS 24 H

Short event

Extended Event

Núm. cap.:193; Presentacion: Olga Lambea, Beatriz Perez De Aranda, Jesus Amor, Marta Solano, Angeles Bravo, Pedro Carreño; Información continua 24 horas nacional e internacional
